It’s A Wrap

Advanced labeling technology saves time, money and resources for food, beverage and packaged goods companies. A technology white paper by Nordson Corporation

06 Sep 2018 | By WhatPackaging? Team

Misapplied, skewed labels and continual cleaning are common with wheel-pot labelling systems

Food, beverage and packaged goods companies around the world are discovering that 30-year-old labelling technology can’t deliver the process control or sustainability needed to remain competitive in today’s marketplace. New non-contact labelling solutions cut operating costs and energy use, while increasing productivity.

Identifying a sticky situation
For decades, most labelling was considered acceptable and well executed if labels had an appealing design and adhered to the container properly. The adhesive was only a small fraction of operating costs, and there was little concern about its price or excess use. Today, this no longer holds true.

Placing any amount of adhesive onto a label or container is an economic and environmental issue for manufacturers worldwide. Because the adhesive is made with petroleum, energy and water – all in high demand – its cost has recently increased 10 to 25 percent. More specifically, the petroleum-based resin has become decreasingly available, creating additional challenges. As a result, the adhesive has become a significant cost, a trend that’s not likely to change any time soon.

In addition, as more companies “go green,” efficient recycling initiatives are being sought after with increasing frequency. Labels with excessive amounts of adhesive take additional time and energy to remove, and can negatively impact container material recycling.

Today, manufacturers are seeking new technologies and strategies for minimising adhesive and energy use and costs – enabling more efficient operations that benefit both the environment and the bottom line.

Traditional labelling system bottlenecks
It’s a bad day when the production line comes to a screeching halt, and reject containers must be scrapped or re-worked due to faulty labelling. In addition to creating much frustration, energy, time, resources and adhesive are wasted.

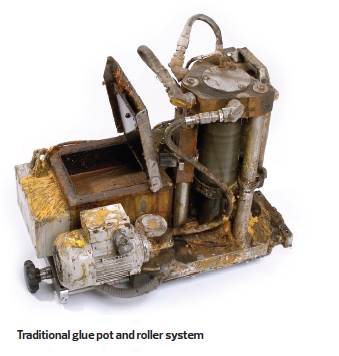

Operations using traditional wheel-pot labelling systems experience this line stops all too frequently. Open wheel-pot-and-roller systems that employ 30-year-old technology are notorious for dented containers, misapplied labels, charred adhesive and the need for frequent cleaning due to adhesive slinging and stringing. In fact, glue application problems can represent as much as 50 per cent of line downtime.

Adhesive degradation and usability alone are one of the biggest challenges associated with traditional labelling systems.

Following are factors that can lead to adhesive breakdown:

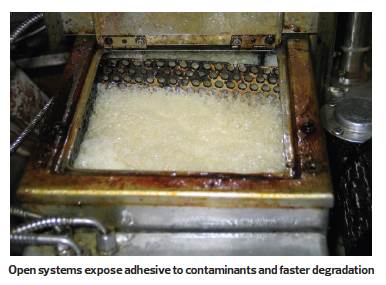

 ► The open, circulating system exposes molten adhesive in the pot to ambient plant air and debris and is vulnerable to moisture and oxygen.

► Because heat easily dissipates from an open system, more energy is expended to keep the molten adhesive at the required application temperature.

► Charring, or burned adhesive residue, results from constant reheating.

Traditional systems also often limit line speed. Increasing the speed on a traditional wheel-pot system commonly results in narrowing of the adhesive pattern, skewed labels or label flagging.

Constant cleaning associated with wheel-pot systems increases downtime and limits productivity and throughput. The unusable adhesive must be removed and disposed of, creating more waste. Adhesive stringing, or “angel hair,” builds upon machinery and components, negatively affecting labelling integrity, product quality and machine productivity. Many operations spend eight hours or more each month cleaning.

Operators routinely replace the system’s numerous moving parts, which wear with age and contribute to label application issues, such as wrinkling and folded-back labels.

Changeovers – the process of changing the labelling system to fit a different container size – can take up to two hours to complete. Operator safety is easily compromised in operations using wheel-pot systems. Adhesive fumes and exposure to molten adhesive can create a hazardous work environment. The bottom line? Traditional wheel-pot systems consistently lack process control, produce more waste and result in higher production and maintenance costs.

Solution: closed, non-contact systems
Labeling operations can eliminate much of the inefficiency and cost associated with open glue-pot-and-roller systems. New “closed,” non-contact labelling systems deliver hotmelt adhesive from the adhesive melter through a delivery hose and onto the container or label via a choice of spray or slot dispensing guns. These first-in-first-out, non-circulating systems prevent heat loss and adhesive exposure to ambient air. Spray and slot guns apply adhesive without contact, enabling the use of thinner, lighter bottles and containers. The non-contact adhesive application also expands the range of container shapes and sizes that can be accommodated on a single labelling machine.

The precise application of adhesive – using fiberised spray and slot gun technology – provides a stable and consistent bond while also minimising the amount of adhesive needed on each label. Look for systems that allow you to choose from a variety of applicators or guns matched to your operation’s requirements. These applicators can dispense spiral-shaped swirls, mini swirls or mini dots to container labels and label cross seams/lap seams – whichever works best for your product.

Whether you are applying magazine-fed (cut and stack), in-line roll-fed or carousel roll-fed labels, the right non-contact labelling applicators or guns can deliver the perfect amount of adhesive with the utmost precision, every time. Adhesive dispensing can also be fully adjustable to fit specifications. Here are some examples:

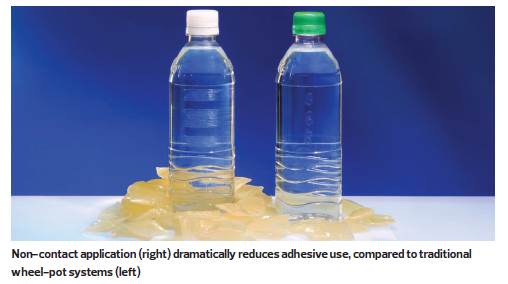

► The best-quality magazine-fed labelling systems can reduce adhesive use by up to 90 percent, compared to traditional wheel-pot systems. Accurately dispensing precise volumes of adhesive to the container at label pick-up and to the label seam, clean adhesive cut-off and more uniform patterns provide manufacturers with much fewer product rejects and less adhesive waste.

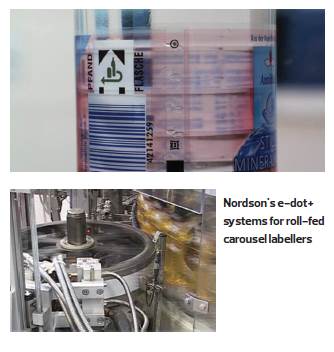

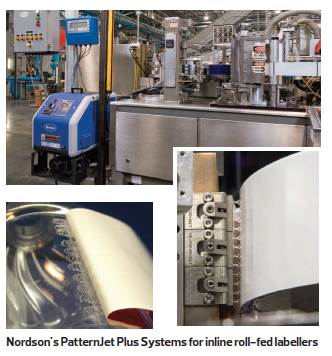

► Non-contact roll-fed labelling systems (both in-line and carousel types) are designed for high-speed labelling of containers in various shapes and sizes. Guns dispense an array of beads or mini-dots on the leading and trailing edges without touching the vacuum drum or label. This eliminates the need for drum resurfacing and minimises set-up and maintenance operations. These non-contact systems can also be easily retrofitted into existing roll-fed labelling machine.

Non-contact labelling systems also feature pattern controls that have the capacity to store up to 99 programs for individual label sizes, reducing changeover time. At the push of a few buttons, a program can change the pressure and timing parameters needed for each label. So, instead of taking up two hours of line downtime – as is the case with traditional systems – the whole changeover process can take less than 20 minutes.

Innovative system brings significant, measurable benefits
Labellers will be hard-pressed to find cleaner, more efficient labelling technology than non-contact labelling machines. The closed system protects adhesive from contaminants and char. Temperatures are more constant, resulting in more efficient energy use. Stringing and fumes – commonly associated with traditional technologies – become a thing of the past.

Among the non-contact labelling system’s many benefits is its ability to help increase productivity. Line stops, misplaced labels, unusable adhesive and dented containers become few and far between. Cleaning is a cinch because operators can simply remove nozzles at the end of the week and clean it while a second set is in operation. Even then, it only takes 15 minutes to remove any debris. In fact, some manufacturers say that their downtime has been reduced by 50 percent since they began using a non-contact labeling system.

Remember how traditional wheel-pot systems can limit labelling line speeds? With non-contact technology, this becomes a non-issue because systems can be geared to your line speed. The same, precise amount of adhesive is applied every time, regardless of line speed. This has enabled some operations to apply their labels at the rate of 1,000 containers per minute.

Talk about cost savings. Consistent, accurate application of minuscule amounts of adhesive to every container, every time, at any speed results in glue savings of up to 90 percent.

A sustainable, positive impact
Combining closed, non-circulating adhesive delivery with precise adhesive application improves process control, saves adhesive and improves container recycling. Energy usage, maintenance, downtime and reject containers are all significantly reduced. Working conditions for operators are improved and safer. Manufacturers can save money and valuable resources while also increasing productivity. The result is a long-term, sustainable solution that will boost the bottom line for years to come.

This White Paper has been produced by Nordson Corporation ( and has been approved by the WhatPackaging? editorial team
